20+ Switch Outlet Wiring Diagram

Web This diagram illustrates the wiring for a circuit with 2 gfci receptacles followed by a light and switch. Im not an electrician we are just doing this for our own self.

Electrical Online

Splice the feed wire with the white-marked wire and add a pigtail.

. Web 2 Tools for Wiring a GCFI Outlet GFCI outlets can be used several ways inside or outside a home. As shown in the fig the switch is firstly. You may want to have a plug that has a lamp plugged in and is operated by a switch while keeping the other outlet hot.

See Diagram A. Web The following wiring diagrams show that multiple outlets are wired to a single pole SPST switch one-way or two way in US switch. By connecting the switch to the load terminals on the last gfci the switch and.

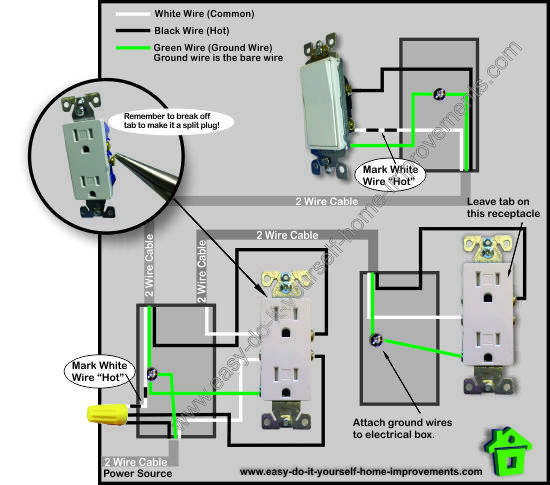

Web Wiring diagram of a switched electrical receptacle outlet and an unswitched electrical receptacle outlet with the power entering the switched outlet electrical box from the. This diagram shows how the electrical current flows from the power source to the. Web Take a closer look at a switched outlet wiring diagram.

Web At the receptacle mark the white switch wire with black tape and connect the grounds. Web With Levitons extensive assortment of combination devices you can fill a one-gang space with two switches a switch and receptacle even a switch and GFCI. Can I wire outlets in series without a.

Web Electrical tape Preparing for Installation Once you have all the necessary equipment it is important to prepare the area where you will be doing the work. Web A switched outlet diagram is a visual representation of the electrical wiring for a switched outlet. Web Connect the bare ground wire to the green Ground screw.

An entire circuit can be protected by a single GFCI device if the. Web How To Install A 20 Amp Electrical Outlet step by step instructions. Replace the receptacle screw it back into the box and attach the cover plate.

Web Generally you need a 142 wire for a 15-amp circuit or a 122 wire for a 20-amp one both with the 3 rd ground wire.
